NeuroStation: compute for large estates and neural analytics

When camera counts climb into the hundreds, or neural networks watch dozens of streams, recording appliances give way to purpose built servers. The NeuroStation line is engineered for that load: sustained ingest across many streams, deep archives, and the headroom modules like Neuro Detector and Face Recognition require.

Engineering the deployment

Sized from your actual numbers, not brochure averages

01 · Load calculation

Channels, resolutions and bitrates: the real ingest the server must sustain around the clock.

02 · Storage math

Bitrate × channels × retention, computed honestly, with growth headroom you can audit.

03 · Analytics sizing

The module mix of detection, faces and plates decides the compute the platform needs.

04 · Room readiness

Rack, protected power and cooling for the equipment room, engineered for local conditions.

Chasing Sun sizes the platform from your channel count, retention target and analytics mix, and stands behind the result through commissioning and SLA.

Compare the models

Four NeuroStation platforms side by side

Every value below comes from the official TRASSIR specification for each model. Where the published page omits a figure, we say so rather than guess.

ModelChannelsHDD baysThroughputPowerForm factor
NeuroStation Compact RE 8200R/16Up to 16 IP cameras2640 Mbps400 W2U 19 inch rack
NeuroStation 8800R/6464 IP cameras, no resolution restrictions8720 Mbps500 WSee datasheet
NeuroStation 8800R/128-A5-SUp to 128 IP cameras8720 Mbps800 W2U 19 inch rack
NeuroStation 8800R/160-A8-SUp to 160 IP cameras, no resolution restrictions8720 Mbps600 W4U 19 inch rack

Source: official TRASSIR product pages, linked from each model below.

The range

Four NeuroStation models, specified exactly as TRASSIR publishes them

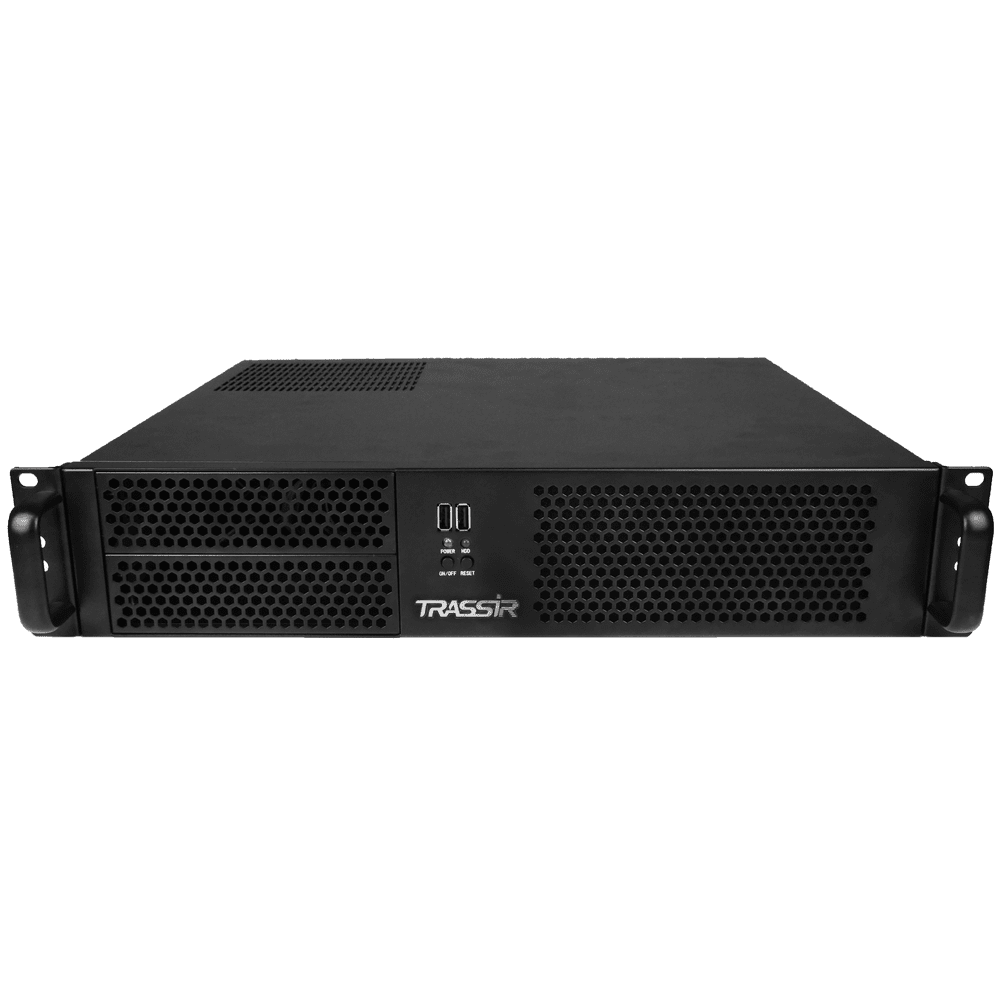

TRASSIR NeuroStation Compact RE 8200R/16

Data & image: official TRASSIR product page

TRASSIR NeuroStation Compact RE 8200R/16

PC Server 8200R/16

Rack mount (2U, 19 inch) video surveillance server for up to 16 IP cameras with two SATA bays for 3.5 inch HDDs of any capacity and total throughput of 640 Mbps. Gigabit Ethernet, HDMI and VGA outputs, supplied assembled with TRASSIR software.

Number of HDD2
Bitrate (Mb/sec)640
Power supplyAC 220 V
Net Weight (kg)7.3
Dimensions (mm)482 х 390 х 89
Power consumption, Watt400
Working temperature, C°10...30ºС
Network interfaces1
Video compressionH.265+, H.265, H.264, MPEG4 or MJPEG
ChannelsUp to 16 IP cameras
Form factor2U 19 inch rack
Request a QuoteOfficial datasheet
TRASSIR NeuroStation 8800R/64

Data & image: official TRASSIR product page

TRASSIR NeuroStation 8800R/64

PC Server 8800R/64

Surveillance server for 64 IP cameras with no resolution restrictions, shipped with TRASSIR OS preinstalled. Eight SATA HDD bays, dual Gigabit Ethernet, 720 Mbps throughput and DVI-D, DisplayPort (4K) and VGA video outputs.

Number of HDD8
Bitrate (Mb/sec)720
Power supplyAC 220 V
Net Weight (kg)12
Video outputD-SUB (VGA), DisplayPort, DVI-D
Dimensions (mm)485x90x555
Power consumption, Watt500
Working temperature, C°+10...+30
Network interfaces2
Video compressionH.265+ | H.265 | H.264+ | H.264 | MJPEG
Channels64 IP cameras (no resolution restrictions)
Operating systemTRASSIR OS (preinstalled)
Output resolutionFullHD on VGA/DVI-D, 4K on DisplayPort
Request a QuoteOfficial datasheet
TRASSIR NeuroStation 8800R/128-A5-S

Data & image: official TRASSIR product page

TRASSIR NeuroStation 8800R/128-A5-S

PC Server 8800R/128-A5-S INT

Rack mount (2U, 19 inch) recording server designed for up to 128 IP cameras, with two Gigabit network ports, eight SATA bays for 3.5 inch HDDs of any capacity and 720 Mbps total bitrate. Runs the TRASSIR platform for large distributed sites.

Number of HDD8
Bitrate (Mb/sec)720
Power supplyAC 220 V
Net Weight (kg)13.5
Dimensions (mm)437 x 647 x 89
Power consumption, Watt800
Working temperature, C°10...30ºС
Network interfaces2
ChannelsUp to 128 IP cameras
Form factor2U 19 inch rack
Request a QuoteOfficial datasheet

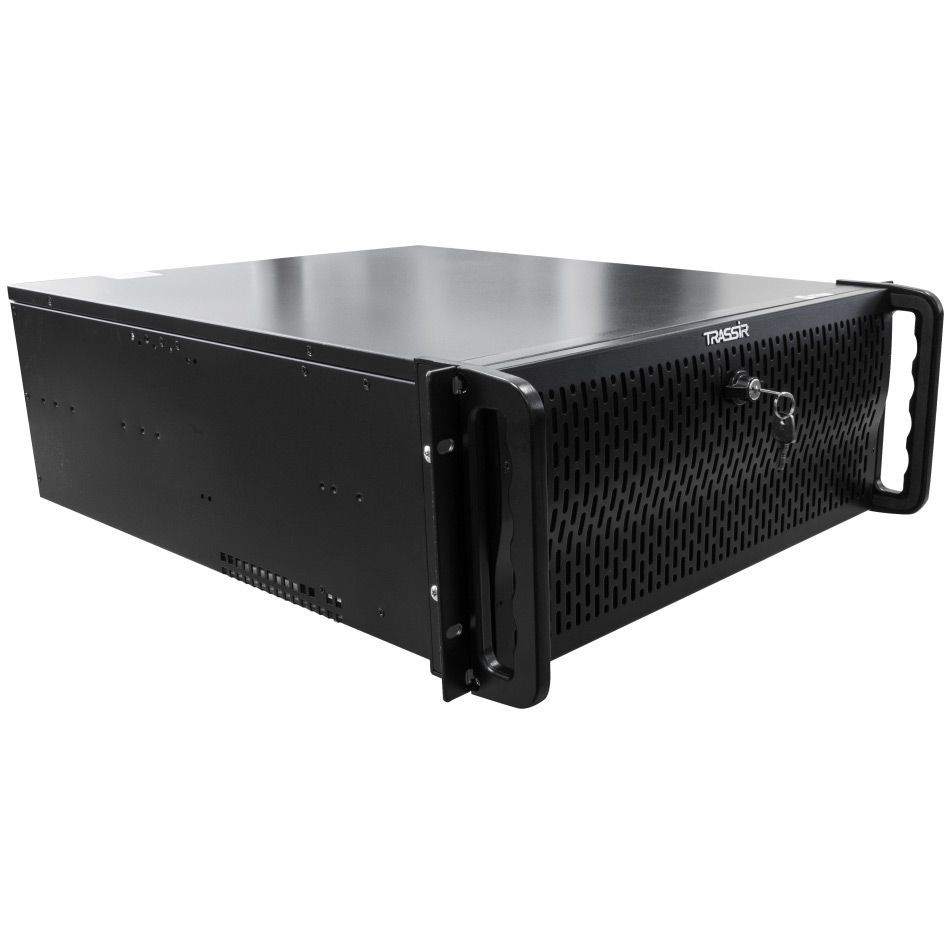

TRASSIR NeuroStation 8800R/160-A8-S

Data & image: official TRASSIR product page

TRASSIR NeuroStation 8800R/160-A8-S

PC Server 8800R/160-A8-S

Top of the line 4U rack surveillance server for up to 160 IP cameras with no restrictions on recording resolution. Dual Gigabit Ethernet, eight SATA HDD bays, 720 Mbps throughput and VGA, DVI-D and DisplayPort outputs.

Number of HDD8
Bitrate (Mb/sec)720
Power supplyAC 220 V
Net Weight (kg)15.5
Video output1 D-SUB (VGA), 1 DVI-D, 1 DisplayPort
Dimensions (mm)430х550х176
Power consumption, Watt600
Working temperature, C°10...30ºС
Network interfaces2
Video compressionH.265+ | H.265 | H.264 | MPEG4 | MJPEG
ChannelsUp to 160 IP cameras (no resolution restrictions)
Form factor4U 19 inch rack
Request a QuoteOfficial datasheet

Where the neural networks run

One analytics server can serve the whole estate

Neural analytics are compute hungry, but TRASSIR does not force a GPU into every rack: recording and analysis are separate, so the expensive compute sits where it pays for itself.

Offload analytics

Multiple TRASSIR servers can send video to one NeuroStation for processing, so branch recorders stay lean while detection runs centrally.

GPU offload for recognition

AutoTRASSIR delegates plate recognition compute from low power recorders to NeuroStation and QuattroStation servers, keeping recognition accurate without upgrading every site.

Design consequence

Start with recording appliances at the branches, add one properly sized NeuroStation, and modules like Neuro Detector and Face Recognition can watch streams from across the estate.

Common questions

Before you size a server

When do we need a NeuroStation instead of an NVR?

Two triggers: channel count and analytics. The MiniNVR line stops at 16 channels; NeuroStation runs up to 160 cameras per server. Once neural modules watch many streams, the compute matters more than the channel count.

Which analytics modules need this class of hardware?

Neuro Detector runs on NeuroStation servers, and AutoTRASSIR offloads its recognition compute to NeuroStation and QuattroStation. Face Recognition and similar neural modules are sized into the same compute budget.

Does every site need its own analytics server?

No. With offload analytics, several TRASSIR servers send video to one for processing, so a single well sized NeuroStation can cover a whole branch network.

What actually decides the model we buy?

Channel count, per camera bitrate, retention days and analytics mix. Those four numbers set the ingest, the disks across the HDD bays and the compute headroom, and they are what our quotation math shows.

Who stands behind the hardware after commissioning?

Chasing Sun supplies from Nairobi stock under authorized distribution, with manufacturer warranty, genuine licensing activated at commissioning, SLA support and direct escalation to the vendor when needed.
