TRASSIR IP Cameras: Bullet, Dome, PTZ & Fisheye

Dual illumination

IR for covert night vision plus warm white LED for full color deterrence, chosen per scene, automatically.

Real WDR, 120 dB

Doorways, loading bays and glass fronts stay readable against hard backlight.

Analytics on board

Human and face detection, line crossing and counting run in the camera itself.

Built for hard sites

IP67 metal housings rated from −40 °C up to +60 °C, Nairobi sun to cold rooms.

From lens to decision

What happens between the scene and the alarm

Scene & lens

Fixed 2.8 mm wides, a motorized 2.7 to 13.5 mm zoom, a PTZ reaching 120 mm and a 360 degree fisheye. The lens is chosen for the scene, never the other way round.

Sensor & light

Sensitivity down to 0.001 lux on a 1/1.8 inch sensor, with dual illumination: IR for covert night vision, warm white LED when color and deterrence matter.

Image processing

Real WDR up to 140 dB holds doorways and glass fronts readable against backlight, while 3D DNR strips night noise before it wastes bitrate.

Compression

H.265+ down to H.264 keeps streams between 8 and 16 Mbps per camera: the number that ultimately drives your storage and bandwidth bill.

Decision

Onboard analytics: human and face detection, line crossing and counting, raise structured events that TRASSIR VMS turns into alarms and reports.

The range

Six lines, specified exactly as TRASSIR publishes them

Data & image: official TRASSIR product page

TRASSIR TR-D2221WDDL4 v3 (Pro DualLight bullet)

TR-D2221WDDL4 v3 2.8

Outdoor 2 MP bullet camera with dual intelligent illumination (IR and warm white LED, each up to 40 m) for monitoring around the clock. Real WDR 120 dB, hardware analytics including human/face detection, line crossing and people counting, in an IP67 metal housing rated from minus 40 to plus 60 C.

Audio	Built in microphone; audio in; audio out
WDR	real WDR (120 dB)
Frame rate	25
Electronic shutter speed	1/3 ~ 1/100,000 s
IR range	up to 40 m
Digital noise Reduction	3D DNR
Corridor mode	No
Resolution	2MP
Form factor	Bullet
Maximum video output resolution	1920x1080
Image sensor	1/2.8" CMOS 2MP
Bitrate (Mb/sec)	up to 8Mbps
Power supply	PoE (802.3af) / 12V DC
Lens (mm)	2.8
Net Weight (kg)	0.400 / 0.465
Sensitivity(Lux)	0.005Lux(F1.6)
Local storage	MicroSD up to 512GB
Ingress protection	IP67
IR	Yes
Case material	Metal
Video input	No
Lightning protection	TVS 6000V
Power PoE	5.2W
Dimensions (mm)	172.3 x 68 x 68
Power consumption, Watt	DC: 4.5W PoE: 5.2W
Working temperature, C°	-40°C … +60°C
Day/Night Mode	Mechanical ICR / FTC
Field of view	H102.5˚, V55˚
Class PoE	802.3af/at
Video compression	Н.265+ / Н.265 / H.264+ / H.264

Request a Quote Official datasheet

Data & image: official TRASSIR product page

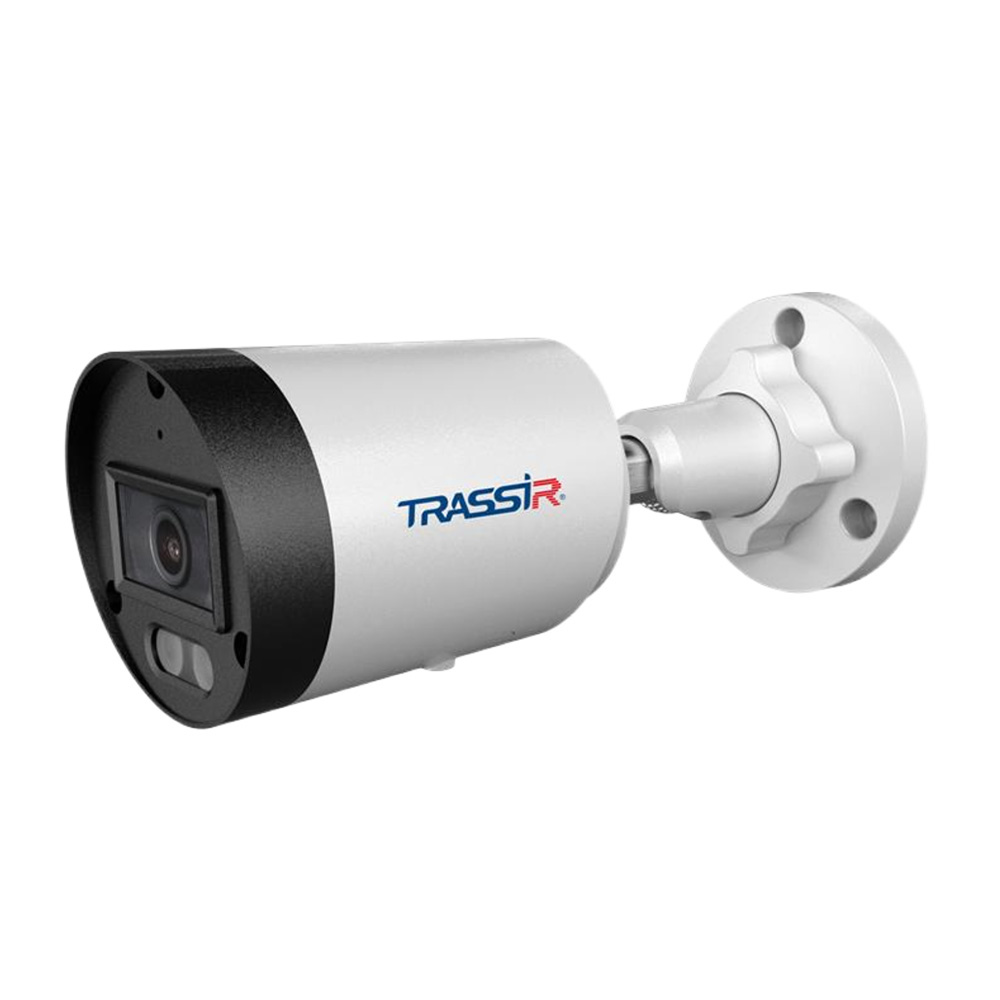

TRASSIR TR-D2181IR5 v7 (8 MP bullet)

TR-D2181IR5 v7 2.8

4K class 8 MP (3840x2160) outdoor bullet camera for 24/7 surveillance with 120 dB WDR, 3D DNR and IR illumination up to 50 m. Built in analytics cover line crossing, area monitoring and smart motion detection with filtering by object type.

Audio	Built in microphone; audio in; audio out
WDR	real WDR (120 dB)
Frame rate	25
Electronic shutter speed	1/3 ~ 1/100,000 s
IR range	up to 50 m
Digital noise Reduction	3D DNR
Corridor mode	No
Resolution	8MP
Form factor	Bullet
Maximum video output resolution	3840x2160
Image sensor	1/2.8" CMOS 2MP
Bitrate (Mb/sec)	up to 16Mbps
Power supply	PoE (802.3af) / 12V DC
Lens (mm)	2.8
Net Weight (kg)	0.400 / 0.465
Sensitivity(Lux)	0.006Lux (F1.6)
Local storage	MicroSD up to 512GB
Ingress protection	IP67
IR	Yes
Case material	Metal
Video input	No
Lightning protection	TVS 6000V
Power PoE	6.6W
Dimensions (mm)	Ø68 x 172.3
Power consumption, Watt	DC: 6.0W PoE: 6.6W
Working temperature, C°	-40°C … +60°C
Day/Night Mode	Mechanical ICR / FTC
Field of view	H110°, V59°
Class PoE	802.3af/at
Video compression	Н.265+ / Н.265 / H.264+ / H.264

Request a Quote Official datasheet

Data & image: official TRASSIR product page

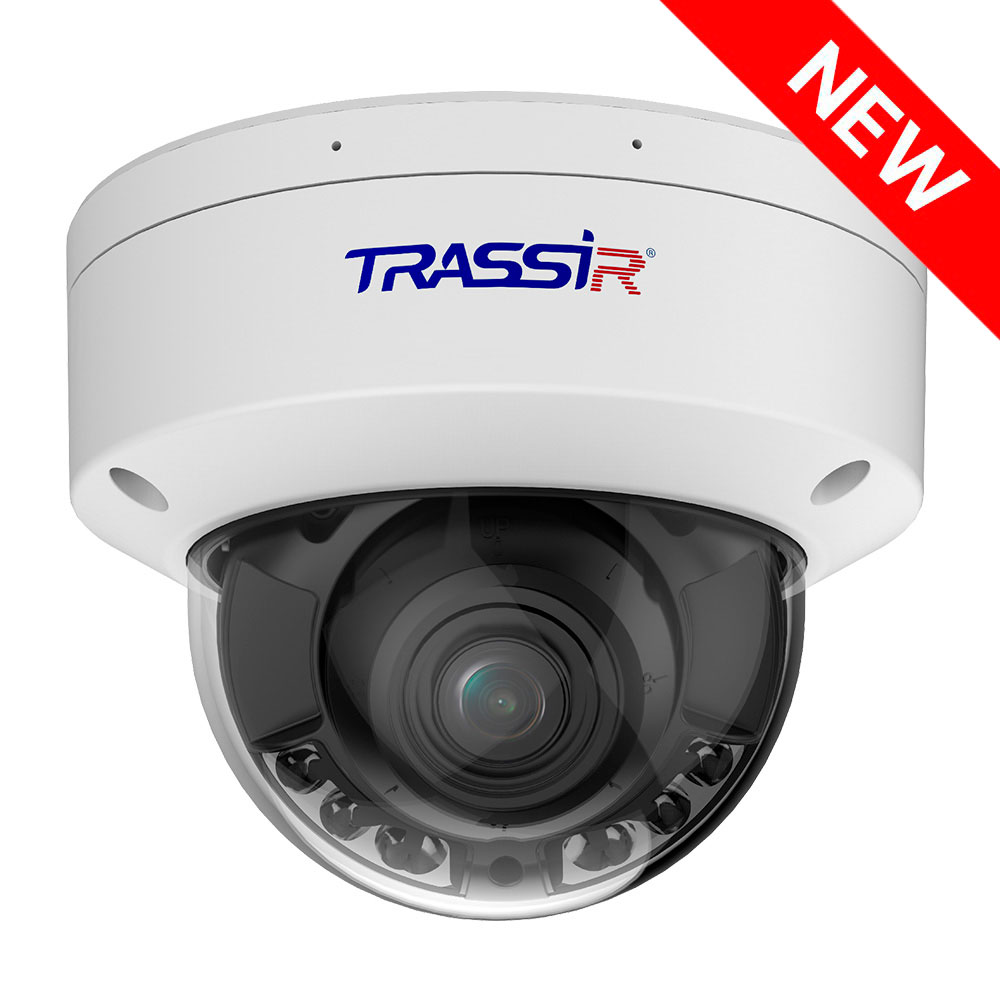

TRASSIR TR-D3363WDZDL4 (6 MP motorized zoom dome)

TR-D3363WDZDL4 2.7-13.5

Outdoor 6 MP dome camera with a motorized 2.7 to 13.5 mm zoom lens, dual intelligent illumination and 0.001 lux sensitivity on a 1/1.8" CMOS sensor. Real WDR 130 dB, a metal housing rated IP67 and IK10, and PoE power for demanding perimeter scenes.

Audio	Built in microphone; audio in; audio out
WDR	WDR (130 dB)
Frame rate	25
Electronic shutter speed	1 ~ 1/100,000 s
IR range	up to 40 m
Digital noise Reduction	3D DNR
Corridor mode	No
Resolution	6MP
Form factor	Dome
Maximum video output resolution	3200x1800
Image sensor	1/1.8" CMOS
Bitrate (Mb/sec)	up to 16Mbps
Power supply	PoE (802.3af) / 12V DC
Lens (mm)	2.7 to 13.5 (motorzoom)
Net Weight (kg)	0.850 / 1.440
Sensitivity(Lux)	0.001Lux (F1.2)
Local storage	MicroSD up to 512GB
Ingress protection	IP67, IK10
IR	Yes
Case material	Metal
Video input	No
Lightning protection	TVS 4000V
Power PoE	18 W
Dimensions (mm)	Ø141 x 112
Power consumption, Watt	DC: 16.2 W PoE: 18 W
Working temperature, C°	-40°C … +60°C
Day/Night Mode	Mechanical ICR
Network interfaces	RJ-45
Field of view	H112.3˚ to 41.2˚ ±5˚, V58.1˚ to 23.1˚ ±5˚
Class PoE	802.3af/at
Video compression	Н.265+ / Н.265 / H.264+ / H.264 / MJPEG

Request a Quote Official datasheet

Data & image: official TRASSIR product page

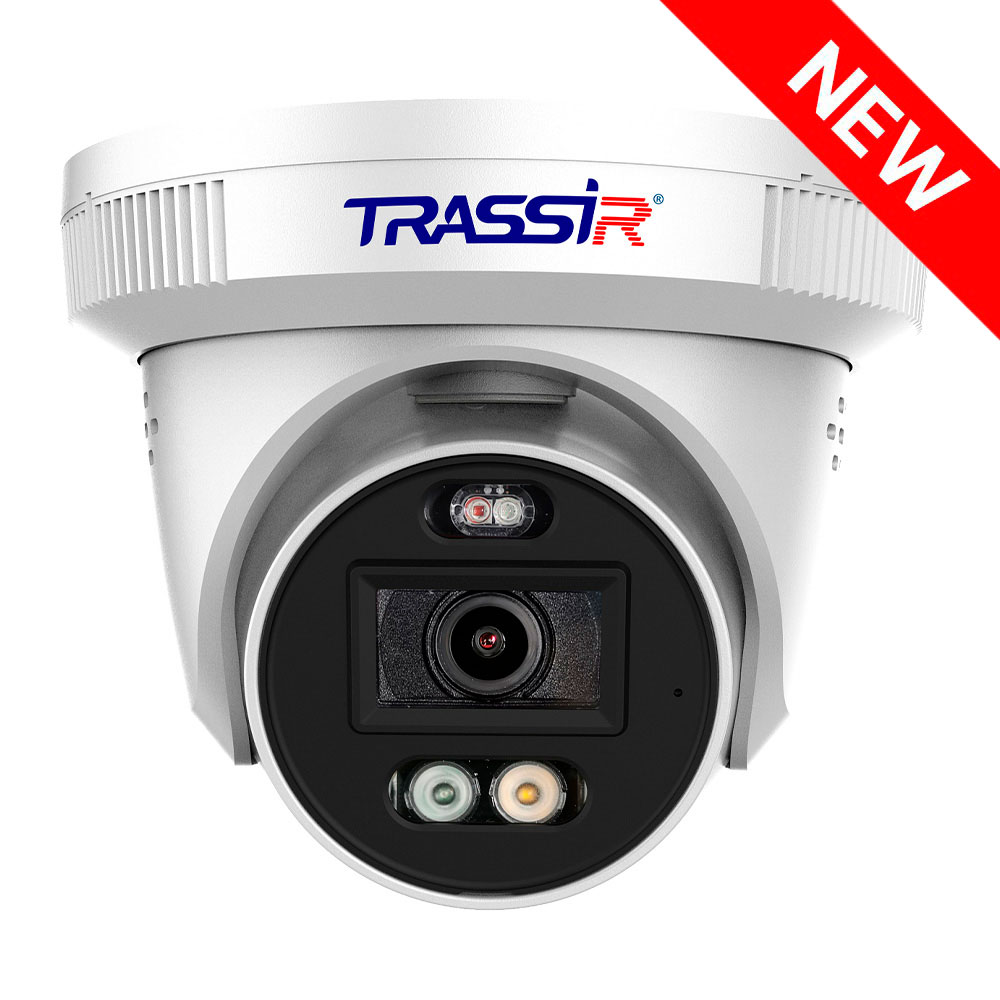

TRASSIR TR-D8221WDDL4 v3 (DualLight vandal sphere)

TR-D8221WDDL4 v3 2.8

Outdoor 2 MP spherical (eyeball) camera with dual IR and warm LED illumination up to 40 m, Real WDR 120 dB and 3D DNR. Edge Storage on MicroSD up to 512 GB, IP67 metal body with TVS 6000V lightning protection, powered by PoE or 12V DC.

Audio	Built in microphone; audio in; audio out
WDR	real WDR (120 dB)
Frame rate	25
Electronic shutter speed	1/3 ~ 1/100,000 s
IR range	up to 40 m
Digital noise Reduction	3D DNR
Corridor mode	No
Resolution	2MP
Form factor	Sphere
Maximum video output resolution	1920x1080
Image sensor	1/2.8" CMOS 2MP
Bitrate (Mb/sec)	up to 8Mbps
Power supply	PoE (802.3af) / 12V DC
Lens (mm)	2.8
Net Weight (kg)	0.528 / 0.723
Sensitivity(Lux)	0.005Lux(F1.6)
Local storage	MicroSD up to 512GB
Ingress protection	IP67
IR	Yes
Case material	Metal
Video input	No
Lightning protection	TVS 6000V
Power PoE	5.2W
Dimensions (mm)	172.3 x 68 x 68
Power consumption, Watt	DC: 4.5W PoE: 5.2W
Working temperature, C°	-40°C … +60°C
Day/Night Mode	Mechanical ICR / FTC
Field of view	H102.5˚, V55˚
Class PoE	802.3af/at
Video compression	Н.265+ / Н.265 / H.264+ / H.264

Request a Quote Official datasheet

Data & image: official TRASSIR product page

TRASSIR TR-D6224IR15 v3 (PTZ speed dome)

TR-D6224IR15 v3 4.8-120

2 MP PTZ speed dome with a 25x motorized zoom (4.8 to 120 mm), IR range up to 150 m and Real WDR 140 dB. Onboard IVS analytics include human detection, line crossing, intrusion and vehicle detection, in an IP66 aluminum housing.

Audio	Audio in; audio out
WDR	WDR (140 dB)
Electronic shutter speed	1/1 s. ~ 1/100 000 s.
IR range	up to 150 m
Digital noise Reduction	2DNR / 3DNR
Resolution	2MP
Form factor	PTZ speed dome
Wi-Fi	None
Maximum video output resolution	1920x1080
Image sensor	1/2.8" CMOS
Bitrate (Mb/sec)	16
Archive, Tb	up to 512GB
Power supply	12V DC
Lens (mm)	4.8 to 120 (motorzoom)
Net Weight (kg)	3
Local storage	microSD/SDHC/SDXC up to 256 GB
Ingress protection	IP66
IR	Yes
Case material	Aluminum
Dimensions (mm)	Ø161 x 276
Power consumption, Watt	PoE: 22W (IR on), DC: 22W (IR on)
Working temperature, C°	-30°C ... +70°C (IR on)
Day/Night Mode	Mechanical ICR
Class PoE	802.3af/at
Video compression	Н.265+ / Н.265 / H.264 / MJPEG

Request a Quote Official datasheet

Data & image: official TRASSIR product page

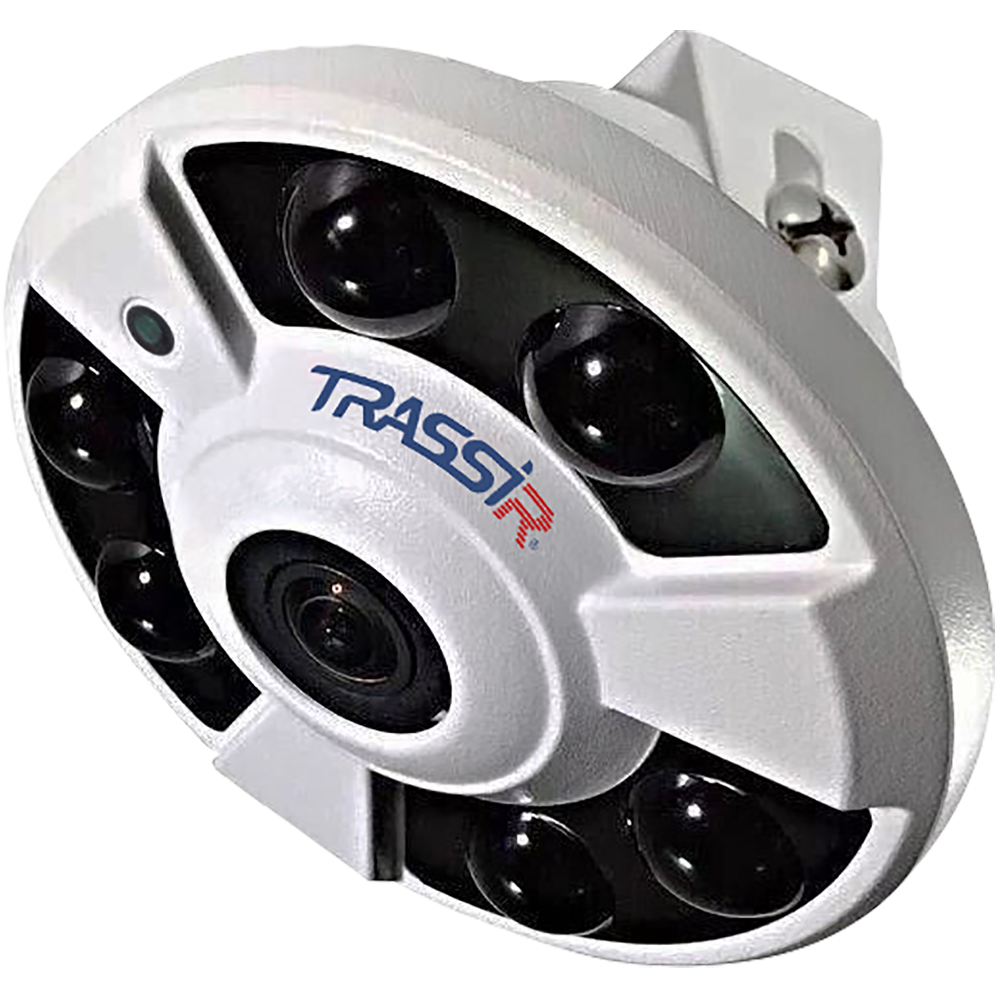

TRASSIR TR-D9251WDIR3 v2 (fisheye)

TR-D9251WDIR3 v2 1.4

5 MP (2592x1920) 360 degree fisheye camera in an IP65 metal housing protected against dust and moisture, with TVS 4000V lightning protection. RWDR 120 dB, 3D DNR and corridor mode make it suited to wide area indoor and outdoor overview.

Audio	Built in microphone; audio in; audio out
WDR	RWDR 120 dB
Frame rate	25
Electronic shutter speed	1/2 ~ 1/1 000 s
Digital noise Reduction	3D DNR
Corridor mode	Yes
Resolution	5MP
Form factor	Fisheye
Wi-Fi	None
Maximum video output resolution	2592x1920
Image sensor	1/2.8" CMOS
Bitrate (Mb/sec)	8
Power supply	12V DC
Lens (mm)	1.4
Net Weight (kg)	0.380
Sensitivity(Lux)	0,003
Local storage	microSD up to 128 GB
Ingress protection	IP65
Case material	Metal
Lightning protection	TVS 4000V
Dimensions (mm)	Ø120 x 58
Power consumption, Watt	6.4
Working temperature, C°	-30°C ... +60°C
Day/Night Mode	Mechanic IR filter
Video compression	Н.265+ / Н.265 / H.264

Request a Quote Official datasheet

Compare the lines

Six lines side by side

Every value below is taken from the official TRASSIR specification for each model. Where the published page omits a figure, we say so rather than guess.

Model	Form factor	Resolution	IR range	WDR	Protection
TR-D2221WDDL4 v3	Bullet, DualLight	2 MP	Up to 40 m	Real WDR, 120 dB	IP67
TR-D2181IR5 v7	Bullet	8 MP	Up to 50 m	Real WDR, 120 dB	IP67
TR-D3363WDZDL4	Dome, motorized zoom	6 MP	Up to 40 m	WDR, 130 dB	IP67, IK10
TR-D8221WDDL4 v3	Sphere, DualLight	2 MP	Up to 40 m	Real WDR, 120 dB	IP67
TR-D6224IR15 v3	PTZ speed dome, 25x zoom	2 MP	Up to 150 m	WDR, 140 dB	IP66
TR-D9251WDIR3 v2	Fisheye, 360 degree	5 MP	See datasheet	RWDR, 120 dB	IP65

Source: official TRASSIR product pages, linked from each model above.

Common questions

Before you choose a camera line

Will TRASSIR cameras work with the recorder we already have?

They are engineered and validated for TRASSIR VMS, which is where they perform best. The reverse also holds: the VMS supports 99% of cameras via native, RTSP and ONVIF, so a mixed estate can migrate gradually.

Do the cameras need separate power cabling?

No. These lines run on PoE (802.3af) or 12V DC, so one network cable carries data and power.

Can we get color video at night, not just IR gray?

Yes. The DualLight models carry both IR and warm white LED illumination, each up to 40 m, and choose per scene: covert IR when watching, full color when deterrence matters.

What happens to footage if the network drops?

Models in the range carry local MicroSD storage, up to 512 GB, so the camera keeps recording at the edge until the link returns.

How do we know the units are genuine, and who honors the warranty?

Chasing Sun is an authorized TRASSIR distributor supplying from Nairobi stock. Every unit carries the manufacturer warranty, and issues that need the vendor are escalated directly.

Not sure which line fits your sites?

Tell us the scenes you need to cover and the light they live in. We'll spec the exact models and quote with official datasheets.
