TRASSIR Hardware

Turnkey recording appliances for sites of every size

An NVR is the fastest way to a professional TRASSIR deployment: recorder and management software in one appliance. Rack it, connect cameras, and the site records under the same VMS your operators already use. For branch networks, each NVR joins the central federation.

Engineered for the sites we actually deploy on

Deployment notes for African sites

Power reality

Grid interruptions are a design input, not a surprise. We pair every recorder with protected, backed up power so an outage never costs you the archive.

Heat & dust

Equipment rooms here run hot. We plan ventilation, placement and enclosure filtering so the recorder lives its full service life.

Constrained bandwidth

Links from branch to head office are often thin. We design remote viewing around them so head office oversight works on the bandwidth you actually have.

NVR or server?

Appliance for the branch, server for the estate

An NVR is the right answer when a site needs dependable recording and VMS management in one box. Past a few hundred cameras, or once neural analytics watch dozens of streams, appliances give way to NeuroStation servers. We size from your channel count, retention target and analytics mix.

Compare the server line

The range

MiniNVR AnyIP, specified exactly as TRASSIR publishes it

The current TRASSIR catalog lists the MiniNVR AnyIP line: three compact appliances covering small and midsize sites. Larger estates are served by the NeuroStation server line.

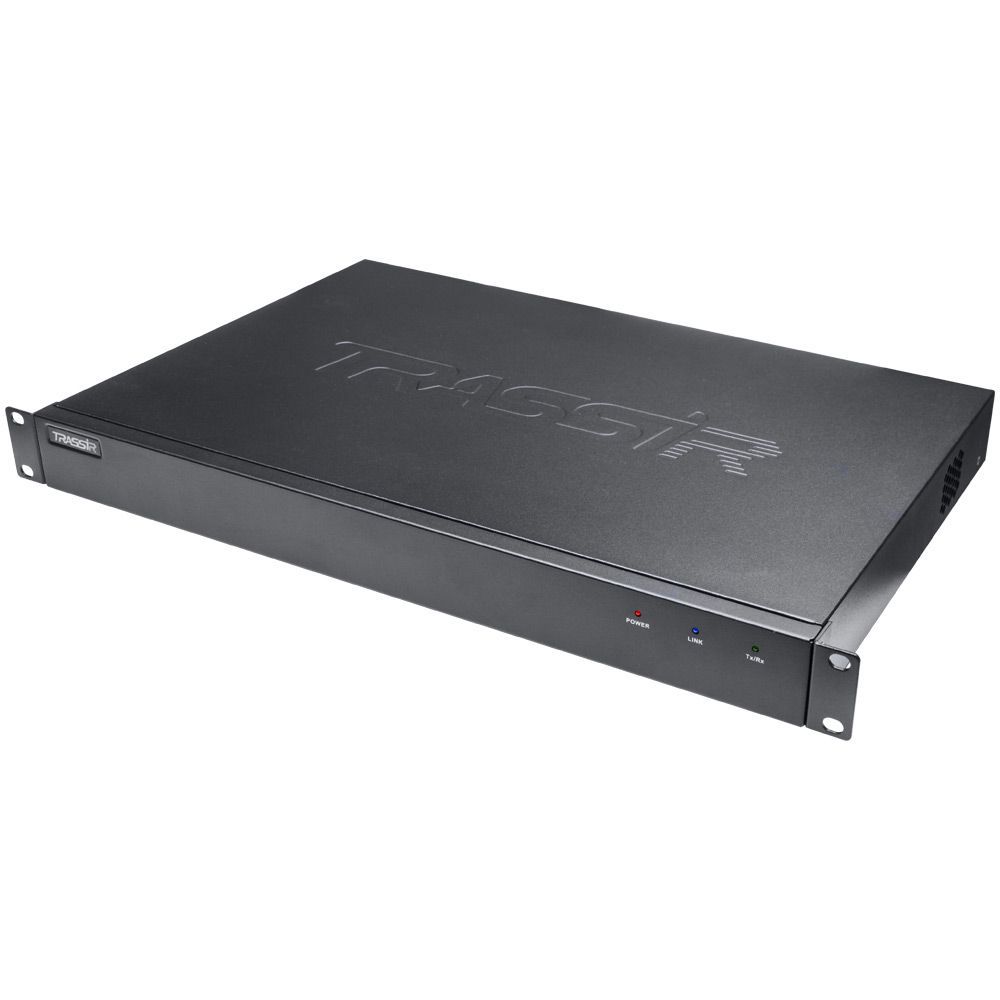

TRASSIR MiniNVR AnyIP 4

Data & image: official TRASSIR product page

TRASSIR MiniNVR AnyIP 4

MiniNVR AnyIP 4

Ready to use network video recorder running TRASSIR OS (Linux) for up to 4 IP cameras of any supported manufacturer at recording resolutions up to 8 MP. Two HDD bays, HDMI and VGA outputs, built for expanding existing or building new CCTV systems.

Number of HDD2
Power supply12V DC
Net Weight (kg)5.5
Dimensions (mm)440x44.5x293.6
Working temperature, C°+10...+30
Network interfaces1
Video compressionH.265 | H.265+ | Н.264 | MPEG4 | MJPEG
ChannelsUp to 4 IP cameras (any supported manufacturer)
Max recording resolutionUp to 8 MP
Operating systemTRASSIR OS (Linux)
Video outputsHDMI, VGA
Request a QuoteOfficial datasheet

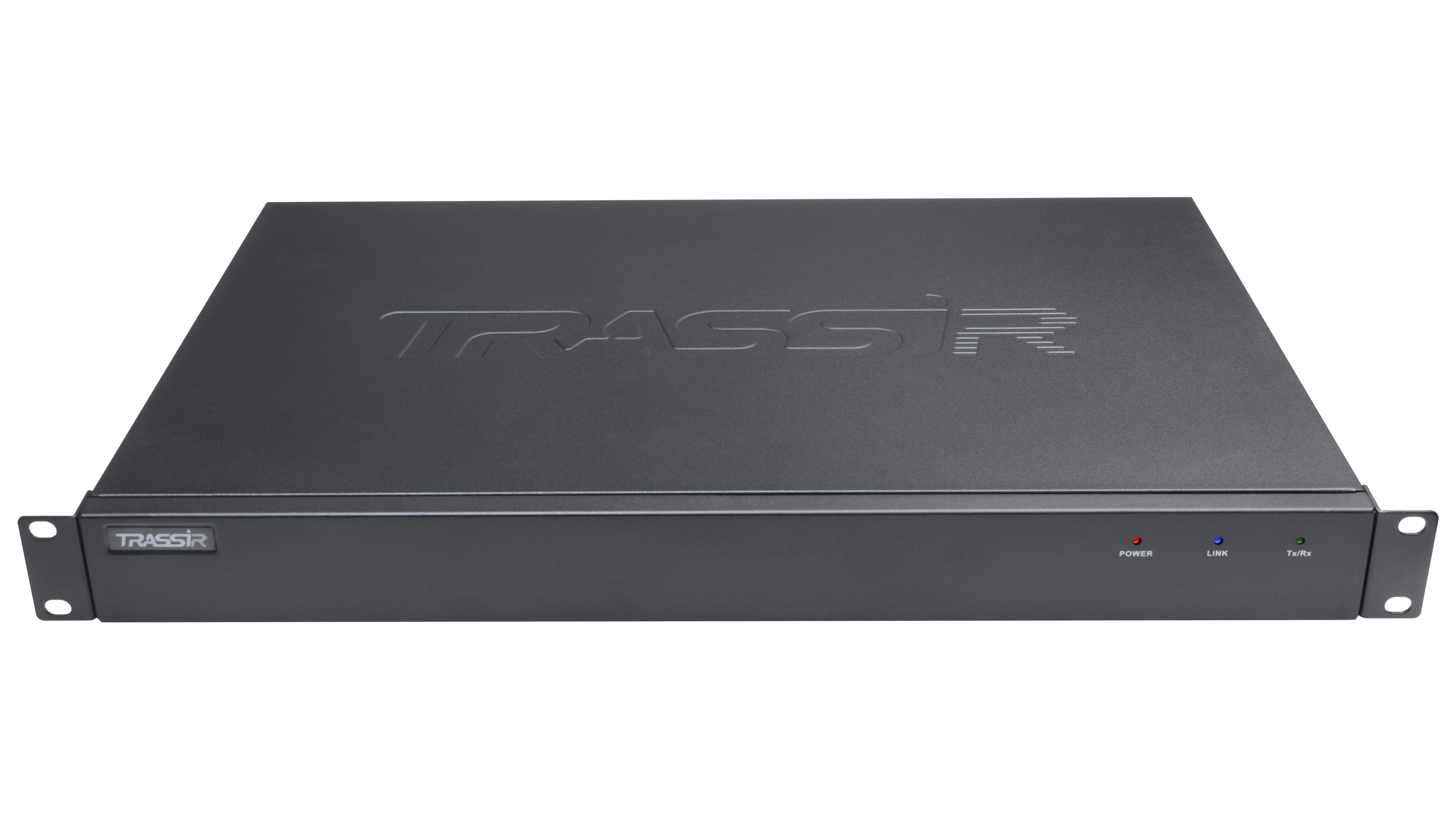

TRASSIR MiniNVR AnyIP 9

Data & image: official TRASSIR product page

TRASSIR MiniNVR AnyIP 9

MiniNVR AnyIP 9

Network video recorder in the MiniNVR family for building CCTV systems, handling up to 9 IP camera channels for recording, playback and display under TRASSIR OS. Supports incoming streams up to 256 Mbps across two HDD bays.

Number of HDD2
Bitrate (Mb/sec)Up to 256 Мbps
Power supply12V DC
Net Weight (kg)5.5
Power consumption, WattUp to 30 W (without HDD)
Working temperature, C°10...30ºС
Network interfaces1
Video compressionH.265+, H.265, H.264, MPEG4 or MJPEG (depending on camera model3)
Channels9 IP cameras
Operating systemTRASSIR OS (Linux)
Request a QuoteOfficial datasheet
TRASSIR MiniNVR AnyIP 16

Data & image: official TRASSIR product page

TRASSIR MiniNVR AnyIP 16

MiniNVR AnyIP 16

Fault tolerant TRASSIR OS (Linux) recorder that connects up to 16 network cameras of any supported manufacturer at up to 8 MP recording resolution. HDMI and VGA display outputs and two internal HDD bays in a compact chassis.

Number of HDD2
Power supply12V DC
Net Weight (kg)5.5
Dimensions (mm)440x44.5x293.6
Working temperature, C°+10...+30
Network interfaces1
Video compressionH.265 | H.265+ | Н.264 | MPEG4 | MJPEG
ChannelsUp to 16 IP cameras (any supported manufacturer)
Max recording resolutionUp to 8 MP
Operating systemTRASSIR OS (Linux)
Video outputsHDMI, VGA
Request a QuoteOfficial datasheet

Compare the models

Three MiniNVR AnyIP models side by side

Every value below comes from the official TRASSIR specification for each model. Where the published page omits a figure, we say so rather than guess.

ModelChannelsHDD baysStated recording limitOperating system
MiniNVR AnyIP 4Up to 4 IP cameras, any supported manufacturer2Up to 8 MP per cameraTRASSIR OS (Linux)
MiniNVR AnyIP 99 IP cameras2Incoming streams up to 256 MbpsTRASSIR OS (Linux)
MiniNVR AnyIP 16Up to 16 IP cameras, any supported manufacturer2Up to 8 MP per cameraTRASSIR OS (Linux)

Source: official TRASSIR product pages, linked from each model above. Beyond 16 channels, the NeuroStation server line takes over.

Sizing the archive

Four things decide how many days you keep

Camera count

Every channel adds a stream written around the clock. The AnyIP models cap at 4, 9 and 16 channels, the first fork in any design.

Resolution & bitrate

In the current camera range, a 2 MP stream runs up to 8 Mbps and an 8 MP stream up to 16 Mbps. Doubling detail can double the disk it consumes.

Retention days

Retention multiplies everything above. Thirty days costs roughly twice the storage of fifteen at the same settings, so agree the target before the hardware.

Recording mode

TRASSIR VMS records continuously or on motion triggered events. Motion triggered archives keep the moments that matter while stretching the same disks further.

Each MiniNVR carries two HDD bays; we size the disks from your four numbers and show the math in the quotation so you can audit it line by line.

Common questions

Before you choose a recorder

Can a MiniNVR record cameras we already own?

Yes. The AnyIP name is literal: they record IP cameras from any supported manufacturer, and TRASSIR supports 99% of cameras via native, RTSP and ONVIF.

Which model fits our site?

Count your cameras and leave headroom: 4, 9 and 16 channel models cover small and midsize sites. Beyond that, or once analytics enter, the NeuroStation line takes over.

Do operators need to learn new software?

No. Each appliance runs TRASSIR OS, so the interface is the same VMS used across the estate, including the iOS and Android apps for viewing on the move.

What about licensing and warranty?

Units come from Chasing Sun's Nairobi stock under authorized distribution, licensed correctly at commissioning, with manufacturer warranty and direct vendor escalation behind them.

How fast can we get a sized quotation?

Send your camera count, resolution and retention target and a design with auditable storage math usually comes back within 48 hours.
