TRASSIR Hardware
Software decides what your surveillance can do; hardware decides whether it does it at 3 a.m. in the rainy season. TRASSIR hardware is validated for TRASSIR VMS, licensed out of the box, and backed by manufacturer warranty.

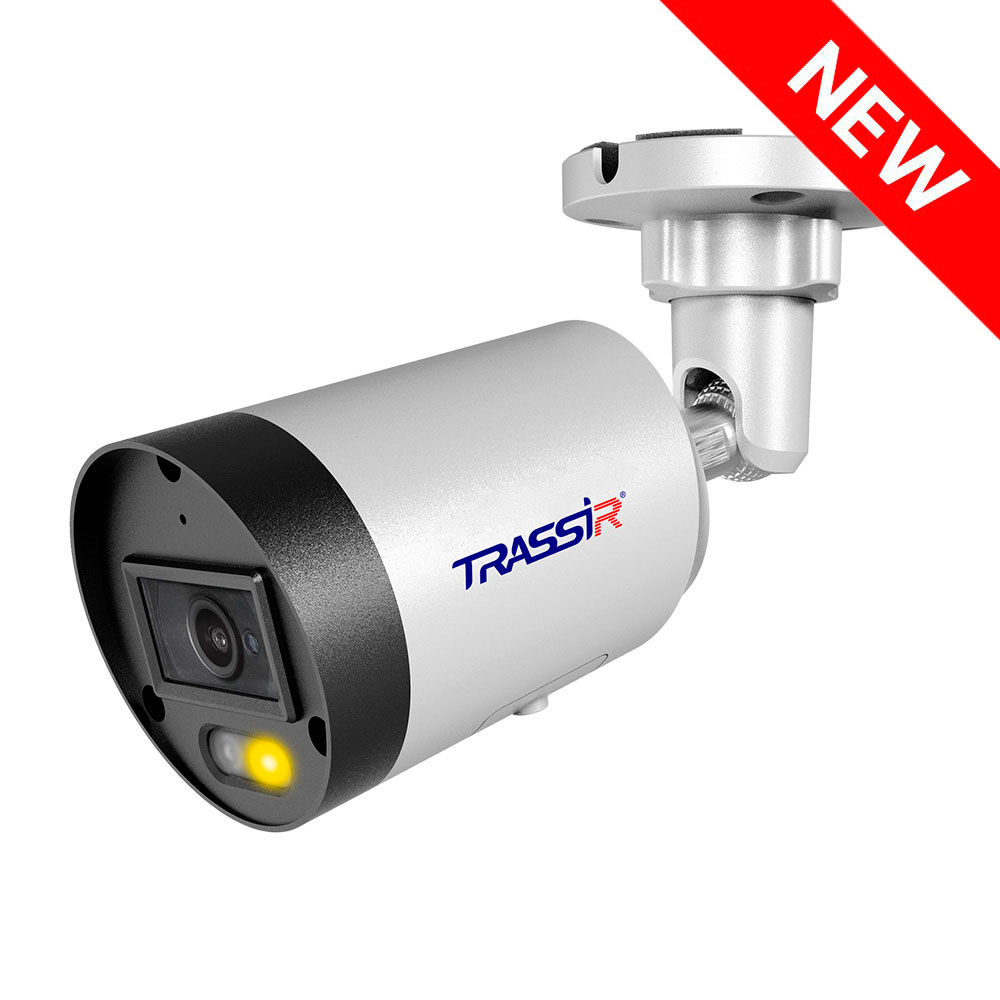

Pictured: TRASSIR TR-D2221WDDL4 v3 (Pro DualLight bullet)
01 · Capture
Bullet, dome, PTZ and fisheye lines with dual illumination, real WDR and onboard analytics, picked per scene, not per catalog page.
6 lines in the current range
The full range

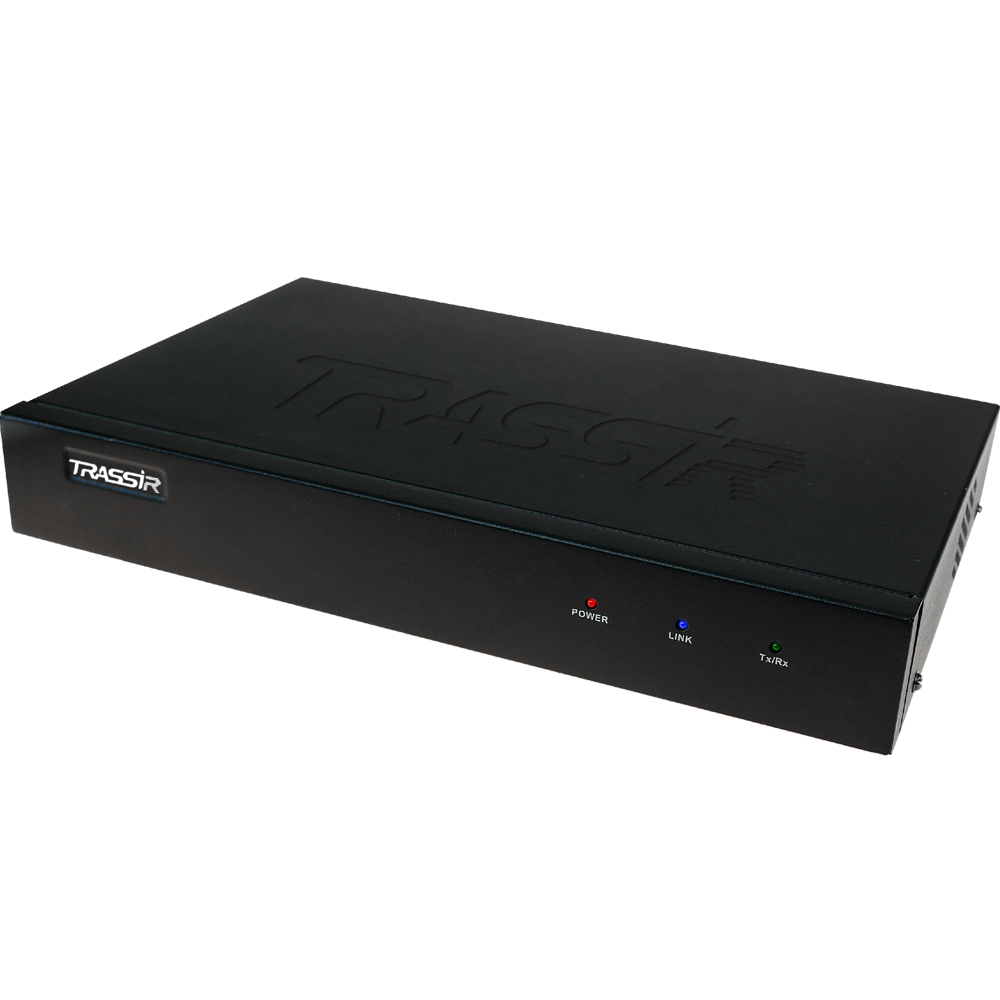

Pictured: TRASSIR MiniNVR AnyIP 16
02 · Record
Turnkey recording appliances: rack it, connect cameras, and the site is recording under the same VMS your operators use everywhere else.
3 MiniNVR models in the current range
The full range

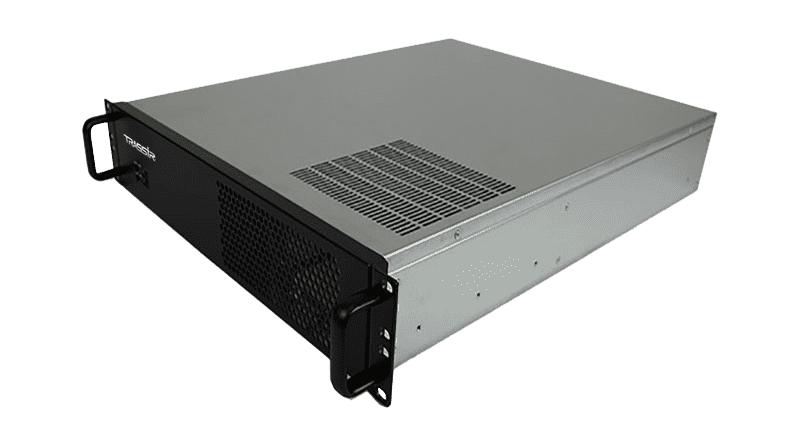

Pictured: TRASSIR NeuroStation 8800R/64
03 · Analyze
NeuroStation platforms for large camera estates and neural network analytics: the compute behind Neuro Detector, Face Recognition and friends.
4 NeuroStation models in the current range
The full rangeWhy matched hardware
Every unit is engineered for the VMS it ships with, so there is no guessing which firmware breaks which feature.
Channels and analytics entitlements are part of the design, not an afterthought at commissioning.
Hardware, software and support through one authorized distributor, accountable end to end.
TRASSIR VMS supports 99% of surveillance cameras via native, RTSP and ONVIF integration, so migration can be gradual.
Architecture
A TRASSIR estate records at three levels, and each one protects the next. Understanding them is most of the sizing conversation.
TRASSIR cameras carry MicroSD edge storage, up to 512 GB on current lines, so a cable cut or switch failure does not mean lost footage.
The site archive lives on a MiniNVR appliance or NeuroStation server next to the cameras. Recording never depends on a WAN link staying up.
TRASSIR VMS federates every site recorder into one console: one search, one rights model, and health monitoring of every camera and disk.
The recording line at a glance
Every figure below comes from the official TRASSIR specifications. Where the published page omits a value, we say so rather than guess.
| Model | Class | Channels | HDD bays | Stated throughput |
|---|---|---|---|---|
| MiniNVR AnyIP 4 | NVR appliance | Up to 4 IP cameras | 2 | See datasheet |
| MiniNVR AnyIP 9 | NVR appliance | 9 IP cameras | 2 | Up to 256 Mbps |
| MiniNVR AnyIP 16 | NVR appliance | Up to 16 IP cameras | 2 | See datasheet |
| NeuroStation Compact RE 8200R/16 | Server, 2U rack | Up to 16 IP cameras | 2 | 640 Mbps |
| NeuroStation 8800R/64 | Server | 64 IP cameras, no resolution restrictions | 8 | 720 Mbps |
| NeuroStation 8800R/128-A5-S | Server, 2U rack | Up to 128 IP cameras | 8 | 720 Mbps |
| NeuroStation 8800R/160-A8-S | Server, 4U rack | Up to 160 IP cameras, no resolution restrictions | 8 | 720 Mbps |
Source: official TRASSIR product pages, linked from each model page.
Sizing guidance
Camera count, retention days, resolution and analytics load determine the recorder or server you need. Send those four numbers, or let us survey the site, and we return a bill of materials with storage math you can audit.
Supply, licensing & warranty
Hardware and licenses come from Chasing Sun's local stock in Nairobi under authorized distribution, so what you rack is genuine and what you wait for is days.
Every unit carries the manufacturer warranty, honored through the same distributor that supplied it: one chain from purchase to replacement.
Channels and analytics entitlements are activated correctly on day one, so an audit or an upgrade never uncovers a licensing surprise.
When an issue needs the manufacturer, we escalate directly to the vendor rather than leaving you to file tickets across borders.
Send camera counts and retention targets and a system design with itemized quotation usually comes back within 48 hours.
Survey, design, supply, installation, commissioning and SLA support, all from the same local team, end to end.
Enquiry → site survey → bill of materials → supply → commissioning → SLA. It starts with your camera count and retention target.
